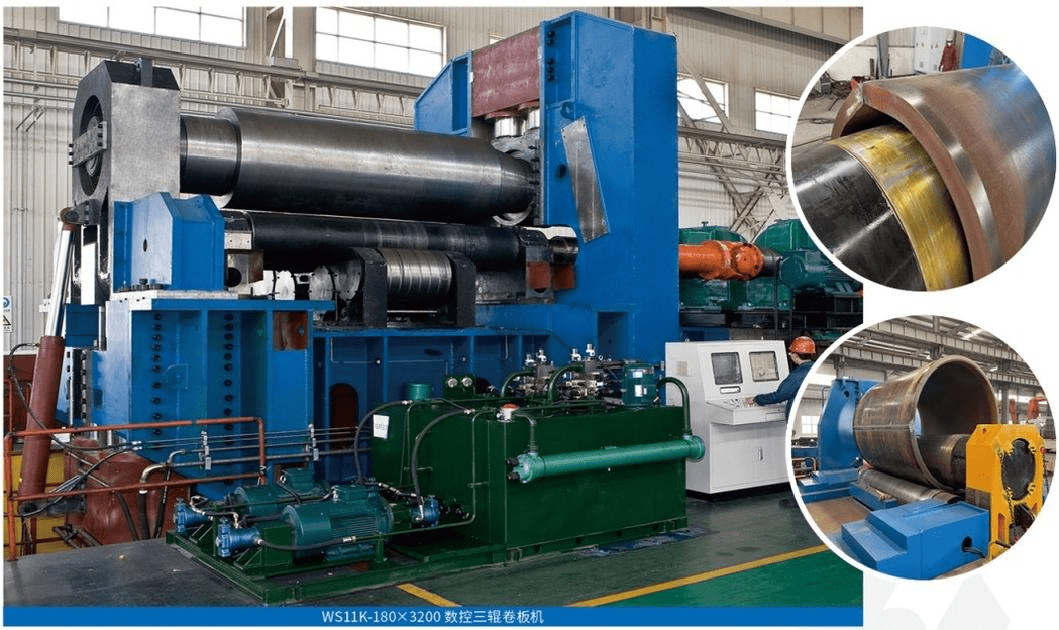

How the WS11K CNC 3-Roller Plate Rolling Machine Solves Core Pain Points in Heavy Metal Fabrication

For heavy equipment manufacturers, shipbuilders, and pressure vessel fabricators, rolling thick metal plates (up to 350mm) is a high-stakes operation. Traditional plate rolling machines often struggle with structural deflection, excessive mechanical vibration, and the costly inefficiency of multiple plate feedings.

The WS11K CNC Horizontal Downward-Adjusting 3-Roller Plate Rolling Machine was engineered specifically to address these industry bottlenecks. Capable of handling plate thicknesses from 6mm to 350mm and widths from 1000mm to 12000mm, this machine redefines heavy-duty metal bending.

Here is how the WS11K solves the most critical technical pain points in large-scale metal fabrication.

Pain Point 1: The Inefficiency of Multiple Plate Feedings

The Problem: Traditional symmetrical 3-roller machines leave flat edges on the metal plate, requiring operators to remove the plate, pre-bend the edges on a separate press brake, or feed the plate from the opposite direction. This wastes hours of production time and poses immense safety risks when handling plates that weigh several tons.The WS11K Solution:The WS11K eliminates secondary processing. Because the two lower rolls can move horizontally together while maintaining a fixed center distance, the machine can perform high-precision end pre-bending and full cylindrical rolling in a single feeding. This dramatically cuts down crane usage, reduces labor hours, and speeds up the production cycle.

Pain Point 2: Mechanical Interference and Vibration During Bending

The Problem: When rolling extreme thicknesses, standard single-motor drive systems struggle to adapt to the changing deformation resistance of the steel plate. This leads to mechanical interference, severe machine vibration, and uneven torque distribution, which can ultimately damage the gearbox or the plate surface.The WS11K Solution:The WS11K utilizes an independent drive system for its lower rolls. Rather than a single shared drive, the two lower rolls are powered by two completely independent motor and reducer sets. This CNC-synchronized system automatically adapts to the physical deformation of the metal in real-time. The result? Zero mechanical interference, drastically reduced vibration, and a smoother, more energy-efficient rolling process.

Pain Point 3: Roll Deflection and Bearing Failure Under Extreme Loads

The Problem: Rolling a 350mm thick steel plate exerts monumental upward pressure. Standard rollers and bearings often succumb to deflection (bending in the middle) or premature wear, leading to barrel-shaped cylinders and costly machine downtime.The WS11K Solution:To combat extreme stress, the WS11K is built with uncompromising metallurgy and structural support:

• Forged Steel Rolls: All work rolls are forged and undergo rigorous quenching and tempering. Every machine is delivered with certified ultrasonic flaw detection and hardness reports to guarantee structural integrity.

• Extra-Wide Spherical Roller Bearings: These specialized bearings distribute extreme radial loads evenly, preventing the bearing failures common in heavy-duty rolling.

• Integrated Dual-Cylinder Top Roll: The downward pressure of the top roll is managed by a tandem double-cylinder setup, ensuring massive, uniform, and stable pressing force across the entire width of the plate.

Pain Point 4: Hydraulic System Overheating and Difficult Maintenance

The Problem: Heavy plate rolling generates massive amounts of heat within the hydraulic system. If the hydraulic unit is buried inside the machine frame, maintenance is a nightmare, and temperature fluctuations can cause the hydraulic fluid to lose viscosity, resulting in a loss of bending force.The WS11K Solution:The WS11K features an independent, external hydraulic station. By moving the system outside the main machine body, routine maintenance and filter changes take minutes instead of hours. Furthermore, the system includes built-in climate control (both cooling and oil-heating devices), ensuring consistent hydraulic pressure whether the factory is freezing cold or experiencing peak summer heat.

Pain Point 5: Lack of Precision and Operator Fatigue

The Problem: Manually adjusting rolls to achieve the perfect radius on thick plates relies entirely on the operator's experience, leading to high scrap rates and inconsistent repeatability.The WS11K Solution:Equipped with a domestically-leading, proprietary CNC control system, the WS11K takes the guesswork out of metal fabrication. Operators can easily program specific radii and bending sequences, allowing the microcomputer to handle the heavy lifting. For custom or one-off jobs, the system allows seamless switching back to manual control, giving operators ultimate flexibility.

Conclusion: A Leap Forward in Plate Rolling Technology

The WS11K CNC 3-Roller Plate Rolling Machine isn't just a piece of equipment; it is a comprehensive solution to the inefficiencies of heavy plate fabrication. By allowing single-feeding pre-bending, eliminating drive vibration, and guaranteeing structural rigidity, it allows manufacturers to roll massive cylinders and cones faster, safer, and with higher precision than ever before.
