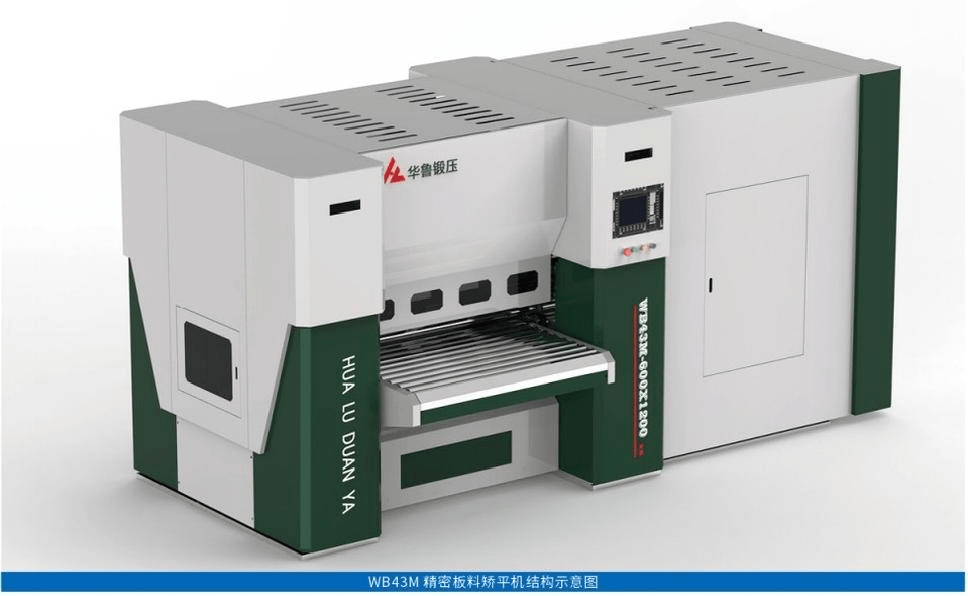

WB43M Precision Parts Leveling Machine: Advanced Micro-Flatness for Stamped Components

Engineered for Perforated Sheets, Enclosure Panels, and High-Precision Automotive Components

In precision manufacturing, sheet metal components and stamped parts often experience significant distortion, internal stress, and warping caused by laser cutting, punching, or stamping processes. The WB43M Precision Leveling Machine is a highly specialized system custom-engineered to eliminate these issues, delivering unparalleled part flatness and dimensional accuracy.

Equipped with a multi-roll, ultra-high-precision roll configuration, the WB43M maintains a highly stable roll gap throughout the processing cycle, achieving an exceptional component leveling precision of less than 0.3mm/m².

Key Technical Advantages & Design Features

The WB43M is built to withstand continuous, high-volume production cycles while maintaining micro-level tolerances.

• Multi-Roll High-Precision Roll System Layout: The machine features a dense, multi-roll configuration supported by rigid backup bearings. This structure provides optimal deflection resistance, allowing the machine to effectively relieve complex internal stresses.

• Ultra-Stable Roll Gap Rigidity: The mechanical architecture is engineered to stay locked under heavy counter-forces. This prevents roll-gap deflection during the leveling process, ensuring consistent quality from the first part to the last.

• Micro-Tolerance Flatness: With a precision threshold of $< 0.3\text{mm/m}^2$, the WB43M guarantees that stamped parts meet the strict tolerances required for subsequent automated assembly, robotic welding, or powder coating.

Wide Range of Specialized Applications

Unlike standard sheet levelers, the WB43M is highly optimized for complex geometries, uneven surface areas, and precision-engineered mechanical parts:

• Stamped Parts & Blanks: Eliminates dish, bow, and twist deformations instantly after punching or fine-blanking.

• Enclosure Panels & Cabinets: Ensures seamless fit-up and premium aesthetics for server racks, control panels, and chassis plates.

• Mesh & Perforated Plates: Flattens perforated sheets effortlessly without distorting the pre-punched hole patterns.

• Rotational Components & Gears: Achieves perfect axial flatness for critical parts like clutch discs, wheel hubs, gear rings, chain links, and sprockets.

• Automotive Components: Meets the strict Quality Management Standards (IATF 16949) required for powertrain, chassis, and body-in-white structural parts.

[Stamped/Warped Part] ➔ [WB43M Multi-Roll Leveling] ➔ [Flatness < 0.3mm/m² (Ready for Assembly)]

Maximizing Efficiency in Automated Production Lines

By introducing the WB43M to your post-stamping or post-cutting workflow, your manufacturing plant can achieve:

1. Reduced Scrap Rates: Eliminate deformed parts that jam automated welding cells or assembly robots.

2. Faster Setup Times: Intuitive controls allow operators to adjust settings rapidly for different part thicknesses and geometries.

3. Extended Tooling Life: Removing internal stresses before further forming steps protects expensive downstream press brakes and stamping dies from premature wear.

Technical Consultation & Project Customization

Enhance your component quality and secure a competitive edge in precision stamping. Contact our expert engineering team today to review your part drawings, material specifications, and to receive a customized technical quote for the WB43M system.
