Mastering Heavy Duty Rolling: The Ultimate Guide to the WB12KY CNC Total Hydraulic 4-Roll Plate Rolling Machine

In the competitive landscape of heavy metal fabrication, efficiency, precision, and reliability are the cornerstones of success. For industries handling medium-to-ultra-thick metal plates, finding a machine that delivers flawless forming in a single pass is a game-changer.

Enter the WB12KY Series CNC Total Hydraulic 4-Roll Plate Rolling Machine—a pinnacle of industrial engineering designed to streamline your production line while maximizing accuracy.

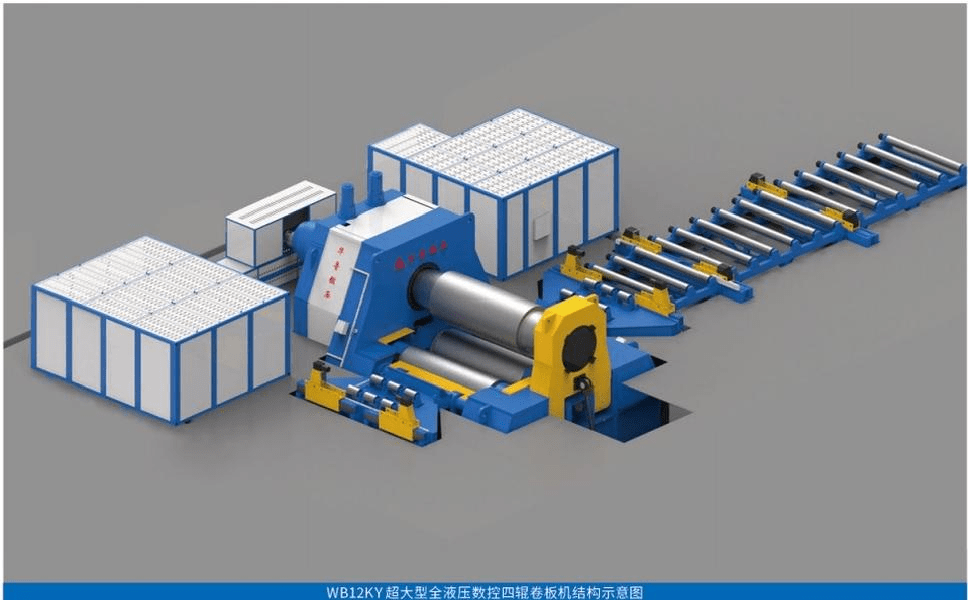

What is the WB12KY 4-Roll Plate Rolling Machine?

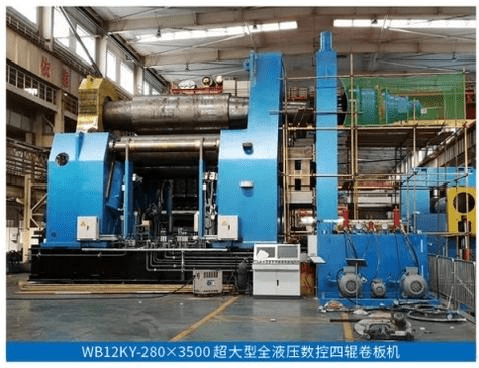

The WB12KY is a high-performance, fully hydraulic 4-roll bending solution capable of processing metal plates with thicknesses ranging from 6mm to 280mm and widths from 1,000mm to 9,500mm.

Unlike traditional 3-roll machines, the 4-roll configuration allows for one-time feeding, meaning the plate edge pre-bending and the final cylindrical or conical rolling are completed in a single continuous cycle without turning the plate around. This significantly reduces handling time and increases workshop safety.

Key Technical Features & Advantages

1. Premium Metallurgy and Quality Assurance

The integrity of any rolling machine lies in its work rolls. The WB12KY features rolls forged from premium rolled steel, subjected to rigorous quenching and tempering (QC/T) heat treatments. To ensure absolute transparency and compliance with international heavy-industrial standards, every machine is delivered with a comprehensive documentation package, including:

• Chemical composition analysis report

• Hardness testing certification

• Ultrasonic Flaw Detection (UT) report

2. Advanced Bearing and Drive Systems

To withstand the immense forces required to bend heavy gauge steel, the work rolls are completely outfitted with ultra-wide series spherical roller bearings. This heavy-duty bearing choice ensures minimal friction, high load capacity, and excellent self-aligning capabilities under extreme stress.

Furthermore, both the top and bottom work rolls feature a fully hydraulic independent drive system. Each roll is powered by its own dedicated hydraulic motor coupled with a high-torque planetary gearbox, providing synchronized and powerful rotation.

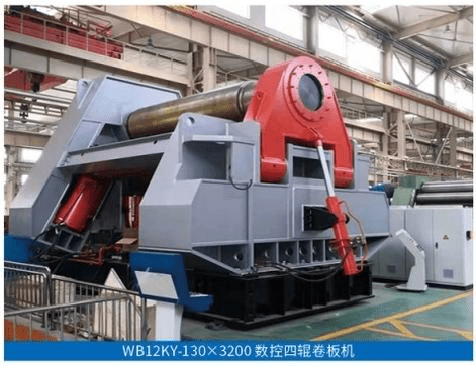

3. Precise Hydraulic Movement & Geometry

The geometric positioning of the rolls determines the accuracy of the final curve.

• Bottom Roll: Driven by high-pressure hydraulic cylinders moving vertically along precision guides.

• Side Rolls: Driven by independent cylinders moving along tilted linear guides to achieve the ideal bending arc.

4. Minimal Flat Ends & Superior Defect Correction

Traditional rolling often leaves large unbent "flat ends" (straight edges) at the plate tips. The WB12KY offers advanced pre-bending and symmetrical rolling capabilities, keeping the straight edge to an absolute minimum.

Additionally, the machine is engineered with on-the-fly correction capabilities. Operators can easily adjust and rectify common rolling defects such as misalignment (offset edges) and conical distortion (large/small mouth ends) during the active rolling process.

5. Independent, Climate-Controlled Hydraulic Power Unit (HPU)

Maintenance shouldn't halt your production. The hydraulic system of the WB12KY is strategically designed independent of the main machine chassis, allowing for open access and simplified routine maintenance. To guarantee stable performance in both extreme winter and summer conditions, the HPU comes standard with integrated oil cooling and heating systems.

6. Industry-Leading Proprietary CNC Control

Equipped with an in-house developed, domestic-leading control system, the WB12KY bridges the gap between manual craftsmanship and automation. Operators can seamlessly switch between Manual Mode for custom/one-off jobs and Micro-Control (CNC) Mode for high-repeatability batch production.

Technical Specifications at a Glance

Why Choose the WB12KY for Your Fabrication Facility?

Investing in the WB12KY series means investing in operational efficiency. By eliminating the need to pre-bend plate ends on a separate press brake, your facility saves energy, labor costs, and floor space. Its massive capacity range (up to 280mm thickness) opens doors to heavy-duty sectors like pressure vessel manufacturing, wind tower production, shipbuilding, and aerospace construction.

Get a Custom Quote Today

Are you ready to elevate your rolling capabilities? Contact our engineering team today for detailed catalogs, structural layouts, and a tailored commercial proposal based on your specific material grades and dimensions.
