BP series plate unit straightening machine

▶Equipment automation, high numerical control, reflecting the international advanced technology.

▶It can realize the bottom plate leveling function of U rib plate weldment and T plate weldment.

▶The flatness in the length direction of the vertical plate unit can be corrected and the flatness in the length direction of the U plate unit can be improved.

▶The equipment is equipped with front and rear feeding rollers, which can automatically feed and facilitate the measurement of the flatness of the bottom plate.

▶The hydraulic system adopts imported proportional valve and pressure sensor device, which can accurately control the position and pressure.

▶The electric control system adopts automatic control technology, sensor detection and signal processing technology, which has the advantages of convenient diagnosis and simple operation.

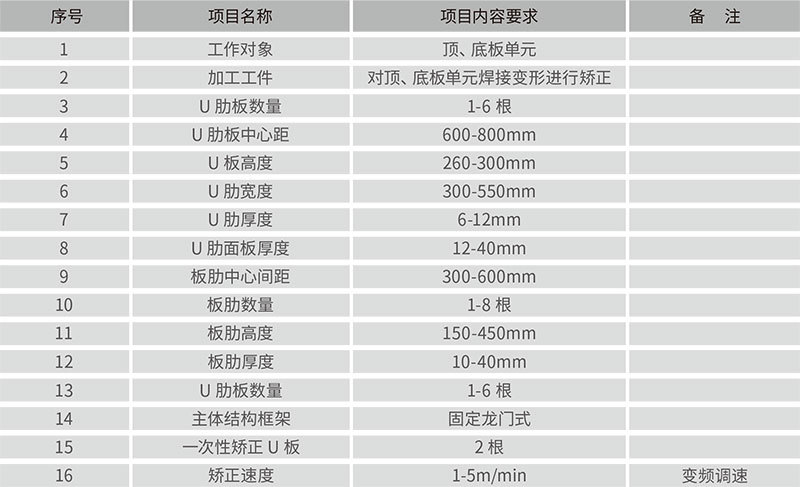

Correctable workpiece parameters:

Structural base plate thickness 40mm width 4500mm U rib height 300mm plate rib height 450mm straightening

Workpiece material: Q345, Q370QD, 420

Maximum steel length of base plate unit: 4~20m
